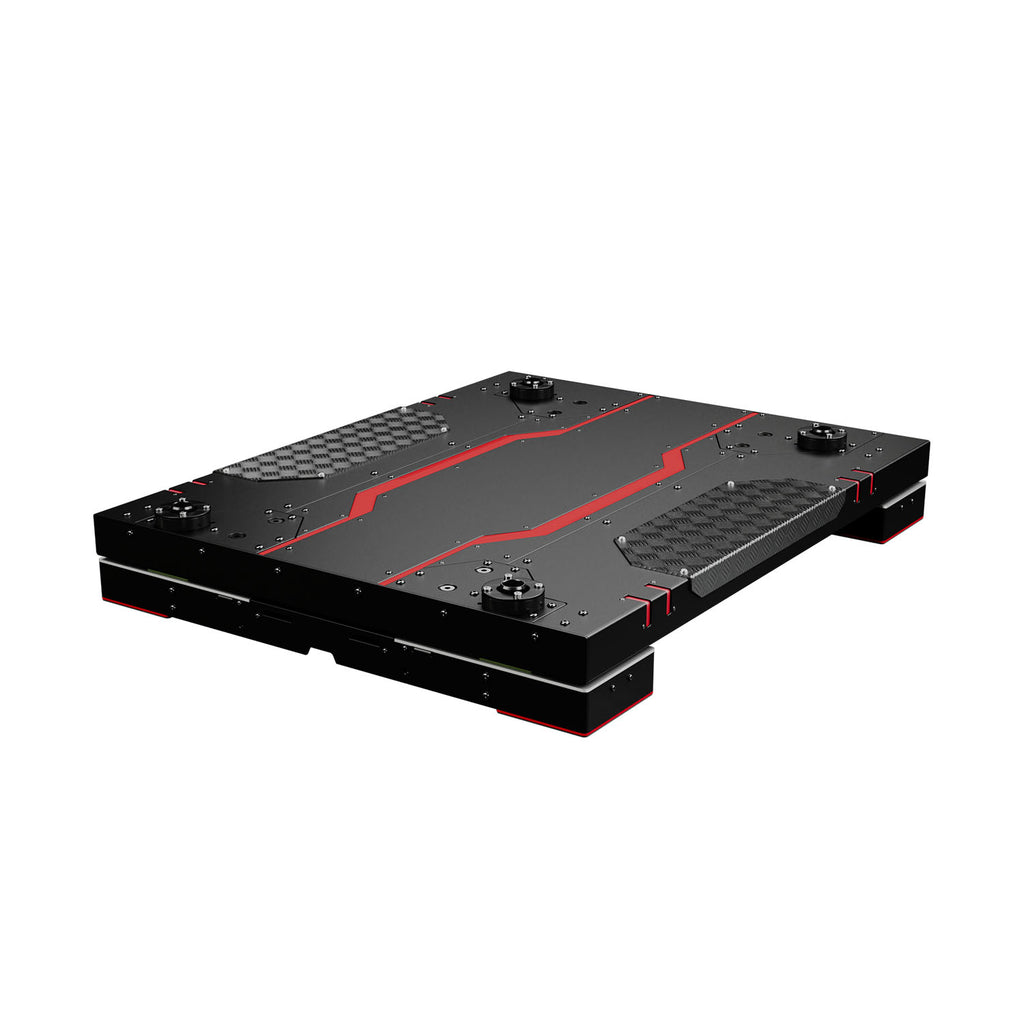

QS-CH2
Feel traction loss the moment it happens.
The Qubic System QS-CH2 adds surge and yaw motion to beneath your rig, translating brake forces, weight transfer and oversteer into physical movement.
Additional Information
Motion System
-
2-DOF traction loss motion platform
-
Simulates SURGE (acceleration & braking) and YAW (oversteer & loss of grip)
Performance & Feel
-
Industrial-grade linear actuator technology
-
Fast, precise motion for clear, repeatable feedback
-
Designed to communicate vehicle behaviour rather than exaggerate movement
-
Optimised for smooth, low-noise operation
Load & Dimensions
-
Maximum moving payload: 300 kg
-
Platform weight: 160 kg
-
Overall dimensions: 1329 × 1073 × 213 mm
Motion Range
-
Surge travel: ±50 mm
-
Yaw rotation: ±7.2°
Power & Connectivity
-
Power input: 115 / 230 VAC (single-phase)
-
PC connection via USB
Software & Compatibility
-
Runs via Qubic Manager motion software
-
Compatible with leading sim racing titles including iRacing, Assetto Corsa and rFactor 2
-
Designed to integrate seamlessly with Qubic System cockpits and motion components
Video Review
Product Details
General Specification
| Platform highlights | |
|---|---|
| Architecture | 2 DOF |
| Platform weight | 160 kg (352.74 lb) |
| Gross moving load | 300 kg (661.39 lb) |
| Main dimensions | |
| Total length | 1328.95 mm (52.32 in) |
| Total width | 1072.5 mm (42.22 in) |
| Total height | 213 mm (8.39 in) |
You can find more detailed information in the product card.
