QS-220 with Pivot (2.5 DOF)

IN STOCK FOR IMMEDIATE DISPATCH. Latest R4 (revision 4) hardware.

Price is for a 2 actuator (2.5 DOF) setup with Pivot. Includes 2 brackets and mounting hardware to attach to PSR1, PSR3 or other brand aluminium extrusion rig.

Innovative technology, modular and compact design, as well as the extremely quiet operation makes the QS-220 as a perfect motion base not only for professional applications but also for home users in various types of cockpits.

QS-220 with Pivot consisting of two actuators, one pivot leg, one power cabinets and one motion controller. The 2.5 DOF configuration is dedicated to all racers who expect the most realistic and precise simulation. Incredible levels of vehicle feedback to the driver allows feeling exactly what the vehicle is doing in real time. During the competition, drivers can feel every possible detail noticeable in a real race (including motor vibrations, road surface, bumps, shunting effects etc.) Due to 2.5 DOF set you can feel like at real racing session directly from your home.

QS-Pivot is an innovative accessory designed for users seeking the intense sensations typically found in high-end simulators. When combined with QS-210 or QS-220 actuators, it creates a unique 2.5 DOF* configuration that delivers full immersion in driving simulation.

* Heave motion pattern combined from pitch axis.

QS-220 SET HIGHLIGHTS

Maximum velocity: 800 mm/s
Maximum acceleration: 0.8 G
Actuator stroke: 100 mm
Latency: <8 ms
Maximum control frequency: 1000 Hz
Vibration frequency range: 0-100 Hz

QS-220 SET KEY FEATURES

Proudly made in EU: Engineered, Designed and Manufactured in Poland
Super silent – extremely quiet operation
Used by professional race car drivers and pilots around the world
Top quality ecosystem for personal and commercial applications
Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
VR HeadWay technology support (VR sickness compensation)
Over 80+ integrated and supported racing and flight games
Compatible with professional simulation applications – Motion SDK (FSMI or FSDI) for software developers

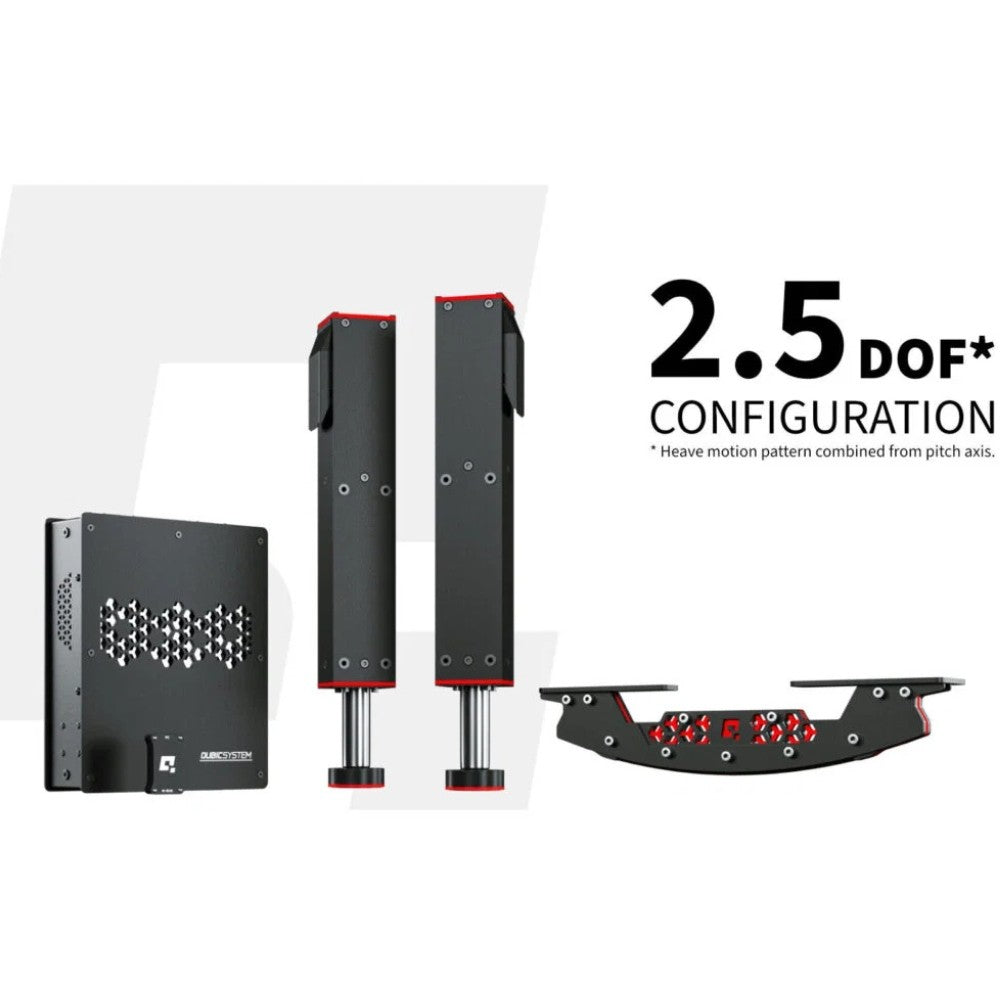

QS-220 motion set with Pivot (2 actuators and Pivot):
2x QS-L1 – linear actuator with cup holder
1x QS-SB2 – power cabinet (control module)
1x Power cable
1 x QS-Pivot set

QS-MC6 controller set:
1x QS-SBML-1 – motion lock with additional 2 m long cable
1x QS-MBT-1 – M-BUS terminator
1x USB cable – 0,5 m long cable (USB micro B)
1x CAT.5E patch cord cable – 2 m long

Future Upgrade Potential:

Additional sets of QS-220 can be configured as a 4 or 6 actuated system to 3DOF or 6DOF using dedicated platforms from the Qubic System product line.
