"PRO SIMRIG PSR3 is a best-in-class sim rig design, with rigidity as its heart."

Ultra Heavy Duty Profile

Overlapping Uprights

Solid Wheel Section

EXTRA RIGID Pedal Section

Not all rigs are created equal. The thought process behind the PSR3 was "how do we squeeze as much rigidity out of a value oriented cockpit, without losing adjustability".

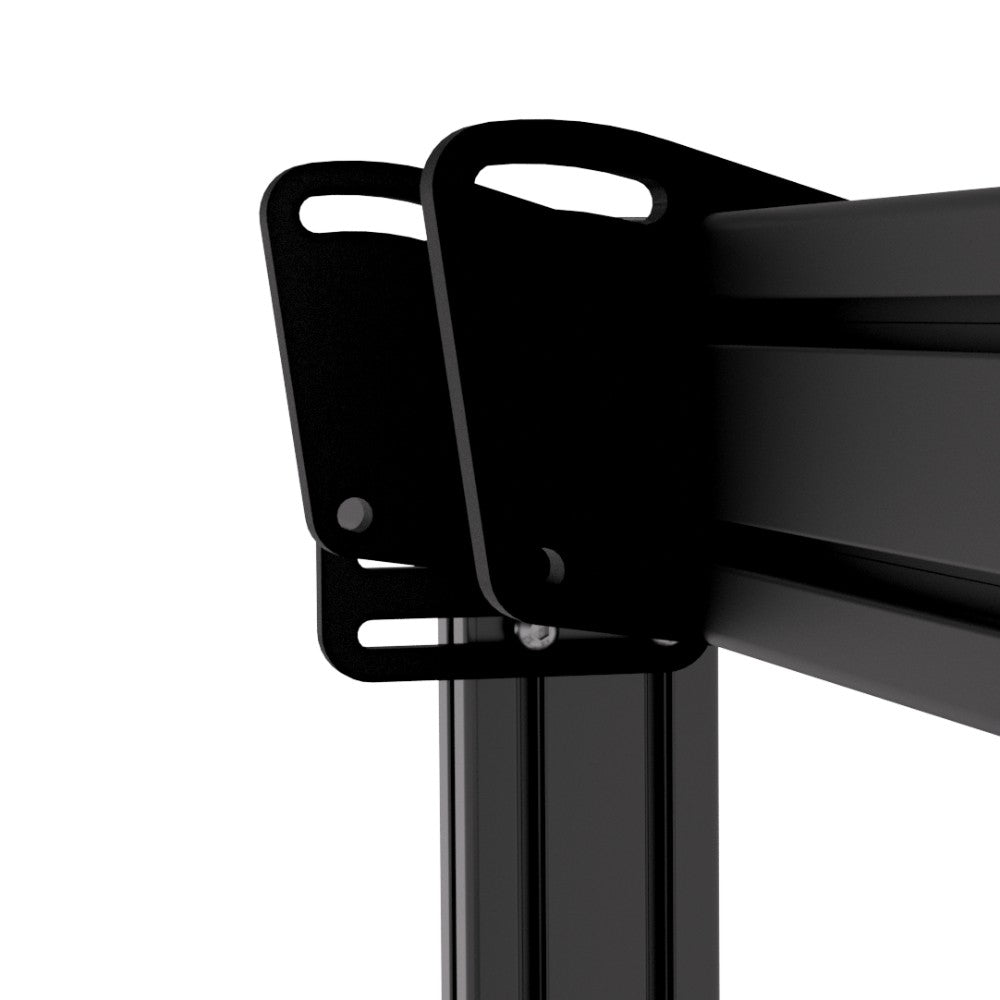

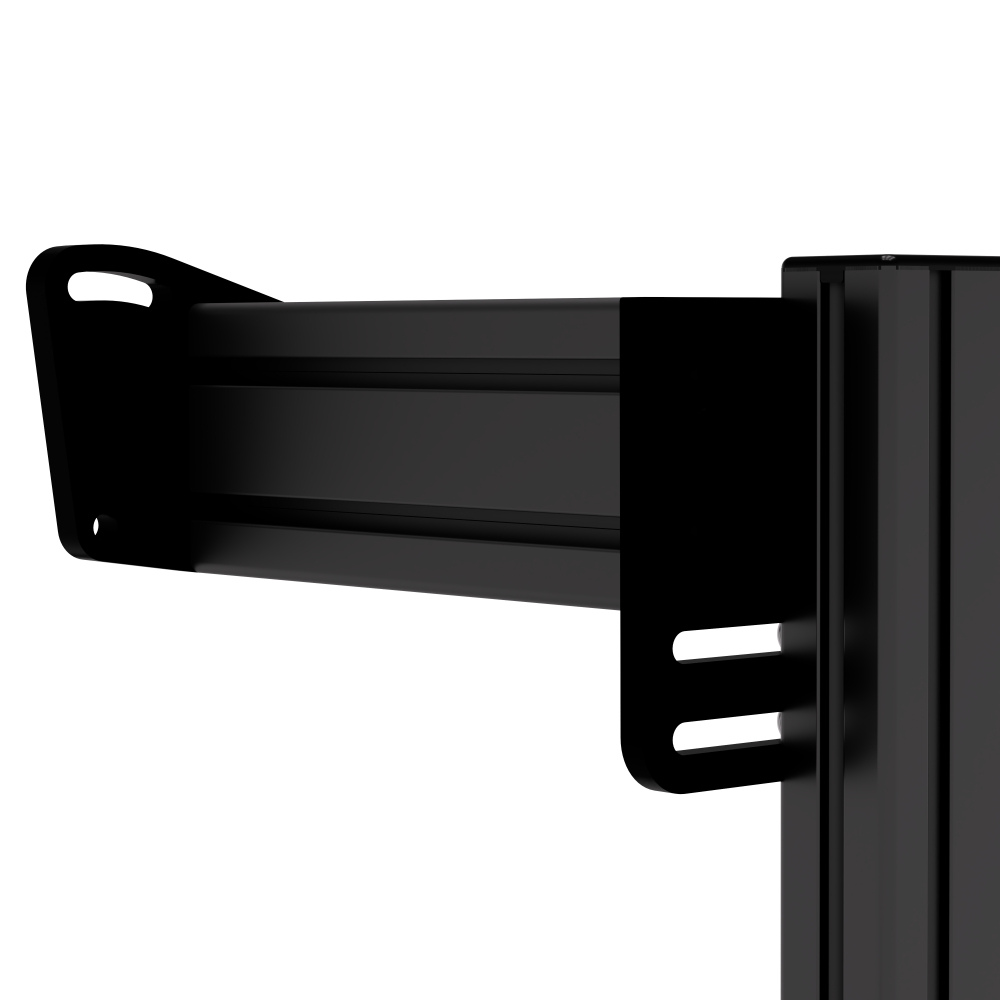

• This new Fanatec DD Edition has a new bespoke Side Mounting System for a clean aesthetic when using a Fanatec DD wheelbase.
• PSR3 is blessed with the same ultra heavy duty profiles that are used on the PSR1. Significantly thicker side walls provide more mass, more weight and more rigidity than its competitors.
• For the uprights, the steering section is of an overlapping design. This uses more material and costs more, but the result is a better anchor for the wheel deck to be supported by the rig perimeter.
• The wheel section uses the same extremely rigid design of the PSR1. It uses 10mm thick aluminium brackets, mated to profile and adjustable side plates.
• PSR3 has a great pedal section. It's design is an evolution of the PSR1, where two 10mm aluminium plates sandwich two 80mm profiles, mounted with 8 direct fixings. Many drivers prefer a very stiff brake setup, and so the PSR3 had to be built with that in mind. Other designs often suffer with flex in the pedal section, primarily down to cost savings on material and design choices.

Braced Side Mount Included as standard

Continuing with the idea of "overlap = strength", the PSR3 includes a braced side mount. This reduces lateral movement when shifters or handbrakes are attached to the side mount.

To help you find the perfect height, two different mounting heights allow an 80mm level of adjustment in 1mm increments.

The side mount comes with 1 x 40x80x490mm profile, and 1 x 40x40x350mm profile.

The side mount can be attached to either the left or right of the PSR3 cockpit.

PSR3 features an externally braced side mount as standard

PSR3 Fanatec DD Edition is built for all modern Fanatec wheelbases

Fanatec DD Edition WHEELBASE COMPATIBILITY

The PSR3 Fanatec DD Edition provides bespoke Side Mounting System brackets for a clean aesthetic.

• Bespoke side mounting compatibility for the following wheelbases:
• Fanatec CSL DD (with or without optional Boost Kit)
• Fanatec DD Pro
• Fanatec ClubSport DD
• Fanatec ClubSport DD+
• Fanatec Podium DD
• If running the Podium DD higher than 18Nm, it is recommended to upgrade to the PRO SIMRIG PSR1 for additional rigidity

WIDE pedal COMPATIBILITY

It is common knowledge that the most consistency is gained through the brake pedal. With that in mind, the PSR3 has a pedal deck that has wide compatibility with top end pedal systems.

• Compatible pedal systems using the manufacturers baseplate:
• SIMAGIC P500 / P700 / P1000 / P1000i / P2000
• Fanatec CSL Elite V2 / CSL / CSL (+LC) / V1 / V2 / V3 (+inverted)
• Heusinkveld Sim Pedals Sprint / Ultimate / Ultimate+
• Meca Cup1 / Evo1
• BJ Steel
• Asetek Forte / Invicta
• Moza S-RP / CRP
• SimTrecs ProPedal GT
• SimCoaches P1 / SimCraft PRO / ImSim Talento
• The following pedals require additional mounting hardware because these pedals mount from underneath. Uses 4 x corner brackets, 8 x t-slot nuts, 8 x bolts. Very easy to mount. Kit can be purchased here separately.
• Thrustmaster T-LCM / T3PA / T3PM
• Logitech (all)
• Fanatec CSR / CSR Elite

PSR3 pedal section is highly adjustable to fit a wide range of pedals
